Product Details

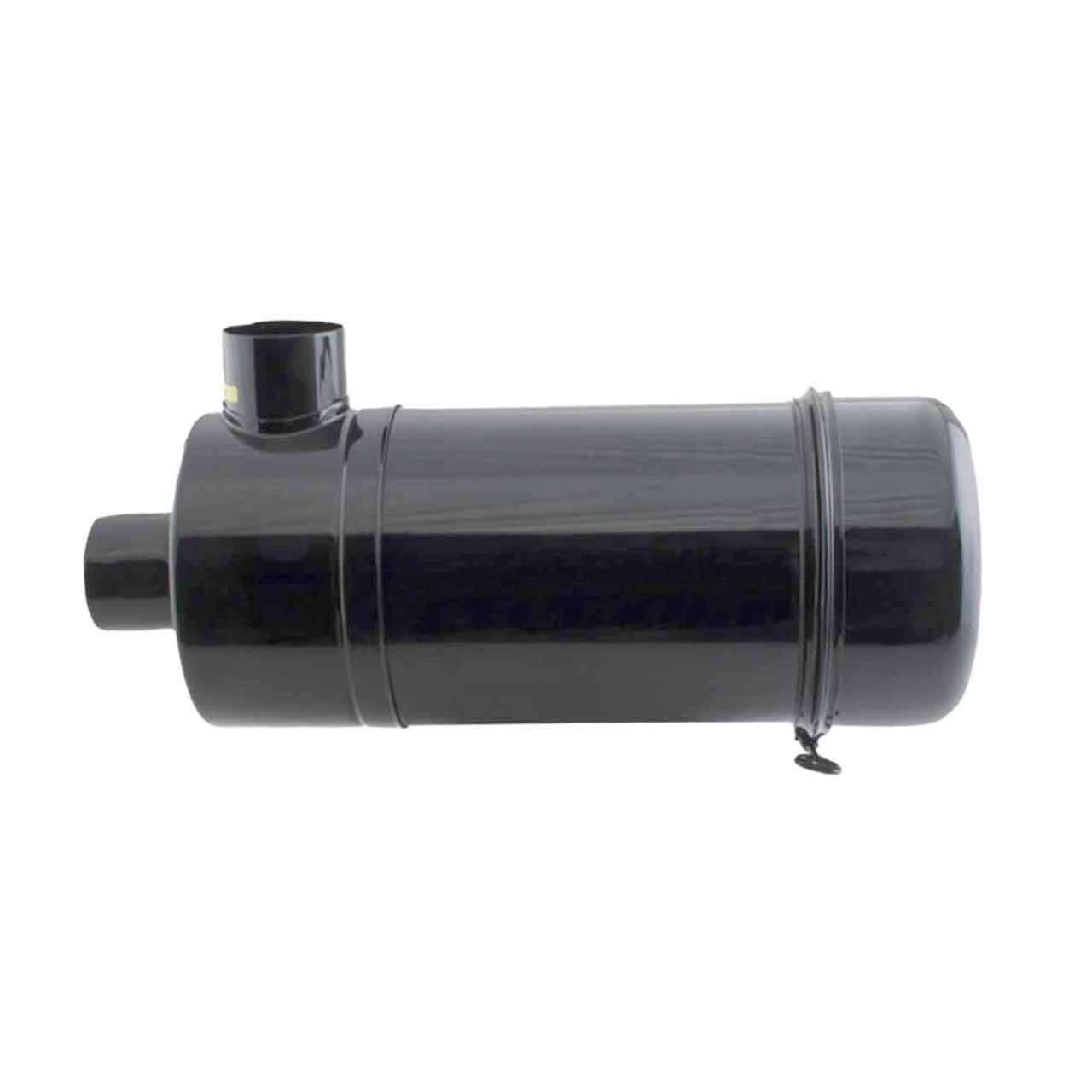

Donaldson® Air Cleaner Assembly FWA Series
Overall Length: 578.1 mm (22.76 inch), Inlet Diameter: 76.2 mm (3.00 inch), Body Diameter Maximum: 203.2 mm (8.00 inch), Outlet Diameter: 76.2 mm (3.00 inch), Body Length: 381.76 mm (15.03 inch), Rated Flow LR: 5 m³/min (177 cfm), Rated Flow MR: 6 m³/min (212 cfm), Rated Flow HR: 6 m³/min (212 cfm), Restriction LR: 14.91 mbar (5.98 inch H2O), Restriction MR: 19.91 mbar (7.99 inch H2O), Family: FWA
Body Diameter Maximum
203.2 mm (8.00 inch)
Body Length
381.76 mm (15.03 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Family
FWA
Inlet Diameter
76.2 mm (3.00 inch)
Item Weight
5.73 kg (12.62 lb)
Outlet Diameter
76.2 mm (3.00 inch)
Overall Length
578.1 mm (22.76 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
6 m³/min (211.89 cfm)
Rated Flow Low-Range
5 m³/min (176.57 cfm)
Rated Flow Medium-Range
6 m³/min (211.89 cfm)
Restriction Low-Range
14.91 mbar (5.99 inch H20)
Restriction Medium-Range
19.91 mbar (7.99 inch H20)
Unit
ea
Package Information
Packaged Depth (cm)
23.9
Packaged Width (cm)
28.4
Packaged Height (cm)
57.2
Packaged Weight (kg)
5.729
