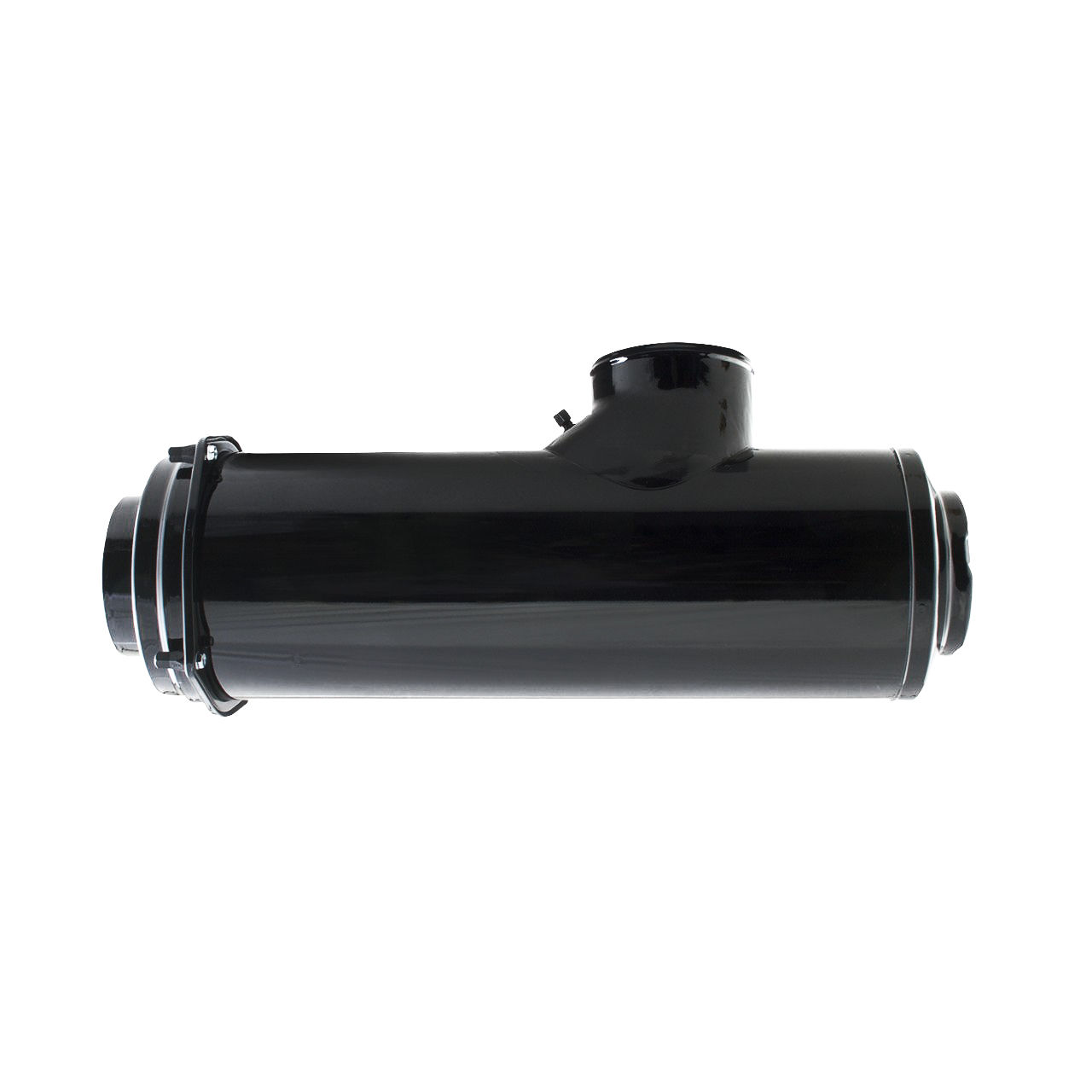

AIR CLEANER, EBA KONEPAC
Brand :
DONALDSON
Part No :
A092037
Product Details
Why Choose Donaldson® EBA Konepac™ Air Cleaners?
The cone shaped filter inside the EBA Konepac™ housing is smaller in size, without sacrificing airflow, compared to the ERA series. This allows trucks to meet demanding under-the-hood width requirements.
• Smaller size meets demanding under-the-hood width requirements
• High airflow for small size
• Cone shaped filter allows maximum media in a small package
Overall Length: 766.83 mm (30.19 inch), Inlet Diameter: 152.4 mm (6.00 inch), Body Diameter Maximum: 228.6 mm (9.00 inch), Outlet Diameter: 152.4 mm (6.00 inch), Body Length: 727 mm (28.62 inch), Rated Flow LR: 24.8 m³/min (876 cfm), Rated Flow MR: 28.3 m³/min (999 cfm), Rated Flow HR: 32 m³/min (1130 cfm), Restriction LR: 14.91 mbar (5.98 inch H2O), Restriction MR: 19.91 mbar (7.99 inch H2O), Restriction HR: 24.91 mbar (10 inch H2O), Family: EBA, Brand: Konepac™
Body Diameter Maximum
228.6 mm (9.00 inch)
Body Length
727 mm (28.62 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Family
EBA
Filter Brand
Konepac™
Inlet Diameter
152.4 mm (6.00 inch)
Item Weight
11.41 kg (25.14 lb)
Outlet Diameter
152.4 mm (6.00 inch)
Overall Length
766.83 mm (30.19 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
32 m³/min (1130.07 cfm)
Rated Flow Low-Range
24.8 m³/min (875.80 cfm)
Rated Flow Medium-Range
28.3 m³/min (999.41 cfm)
Restriction High-Range
24.91 mbar (10.00 inch H20)
Restriction Low-Range
14.91 mbar (5.99 inch H20)
Restriction Medium-Range
19.91 mbar (7.99 inch H20)
Style
Cone
Unit
ea
Package Information
Packaged Depth (cm)
91.4
Packaged Width (cm)
30.5
Packaged Height (cm)
40.6
Packaged Weight (kg)
11.411
