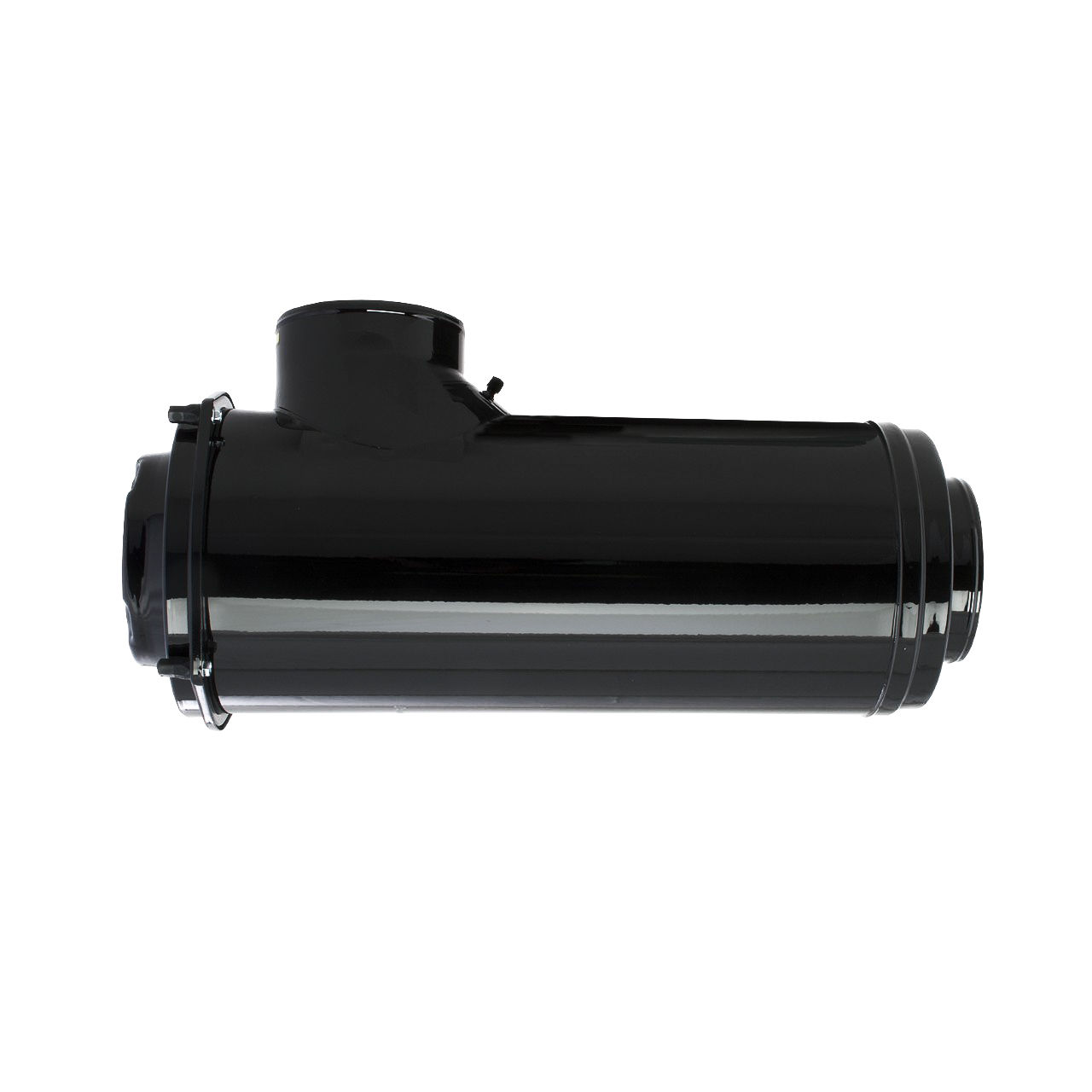

AIR CLEANER, EBA KONEPAC
Brand :
DONALDSON
Part No :
A112018
Product Details
Why Choose Donaldson® EBA Konepac™ Air Cleaners?
The cone shaped filter inside the EBA Konepac™ housing is smaller in size, without sacrificing airflow, compared to the ERA series. This allows trucks to meet demanding under-the-hood width requirements.
• Smaller size meets demanding under-the-hood width requirements
• High airflow for small size
• Cone shaped filter allows maximum media in a small package
Overall Length: 767.08 mm (30.20 inch), Inlet Diameter: 177.8 mm (7.00 inch), Body Diameter Maximum: 279.4 mm (11.00 inch), Outlet Diameter: 177.8 mm (7.00 inch), Body Length: 727 mm (28.62 inch), Rated Flow LR: 32.6 m³/min (1151 cfm), Rated Flow MR: 36.8 m³/min (1300 cfm), Rated Flow HR: 41.7 m³/min (1473 cfm), Restriction LR: 14.91 mbar (5.98 inch H2O), Restriction MR: 19.91 mbar (7.99 inch H2O), Restriction HR: 24.91 mbar (10 inch H2O), Family: EBA, Brand: Konepac™
Body Diameter Maximum
279.4 mm (11.00 inch)
Body Length
727 mm (28.62 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Family
EBA
Filter Brand
Konepac™
Inlet Diameter
177.8 mm (7.00 inch)
Item Weight
13.82 kg (30.45 lb)
Outlet Diameter
177.8 mm (7.00 inch)
Overall Length
767.08 mm (30.20 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
41.7 m³/min (1472.62 cfm)
Rated Flow Low-Range
32.6 m³/min (1151.26 cfm)
Rated Flow Medium-Range
36.8 m³/min (1299.58 cfm)
Restriction High-Range
24.91 mbar (10.00 inch H20)
Restriction Low-Range
14.91 mbar (5.99 inch H20)
Restriction Medium-Range
19.91 mbar (7.99 inch H20)
Style
Cone
Unit
ea
Package Information
Packaged Depth (cm)
91.4
Packaged Width (cm)
35.6
Packaged Height (cm)
50.2
Packaged Weight (kg)
13.824
