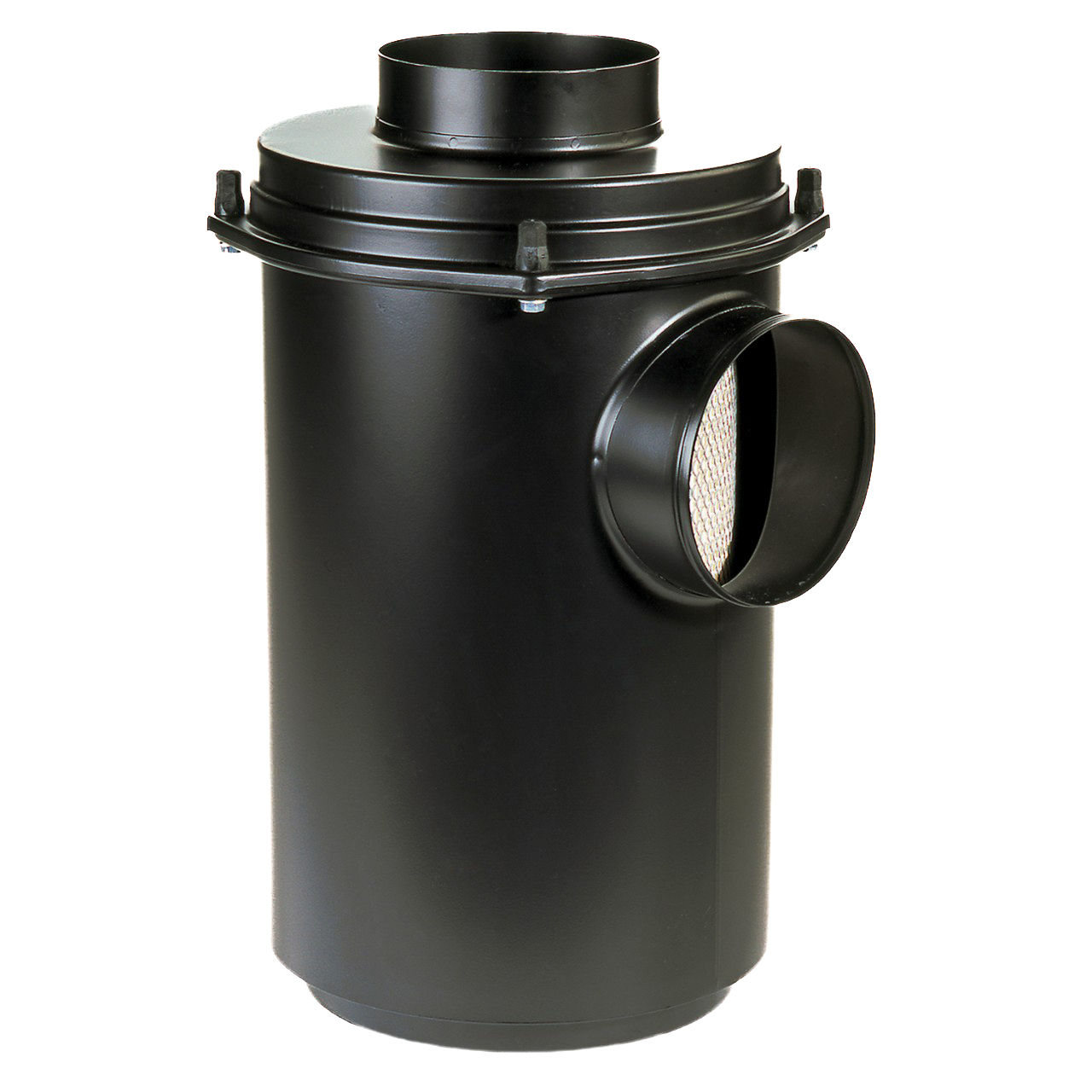

AIR CLEANER, ERA RADIALSEAL
Brand :
DONALDSON
Part No :
A150141
Product Details
Why Choose Donaldson® ERA RadialSeal™ Air Cleaners?
• ERA RadialSeal™ air cleaner series delivers a reliable filtration system for your engine and simplifies filter service
• Black, corrosion and chemical-resistant polymer paint retains its finish through all types of weather
• Double airflow throughput by using two air cleaners
• Vacuator™ valve automatically expels moisture from bottom of housing
• RadialSeal™ sealing technology and fewer access bolts to remove during service compared to older EBA air cleaner design
• Allows up to 1350 cfm airflow throughput per air cleaner
Overall Length: 637.79 mm (25.11 inch), Inlet Diameter: 152.4 mm (6.00 inch), Body Diameter Maximum: 381 mm (15.00 inch), Outlet Diameter 152.4 mm (6.00 inch), Body Length: 517.65 mm (20.38 inch), Rated Flow LR: 21.5 m³/min (759 cfm), Rated Flow MR: 24.9 m³/min (879 cfm), Rated Flow HR: 27.7 m³/min (978 cfm), Restriction LR: 14.91 mbar (5.98 inch H2O), Restriction MR: 19.91 mbar (7.99 inch H2O), Restriction HR: 24.91 mbar (10 inch H2O), Family: ERA, Brand: RadialSeal™
Body Diameter Maximum
381 mm (15.00 inch)
Body Length
517.65 mm (20.38 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Family
ERA
Filter Brand
RadialSeal™
Inlet Diameter
152.4 mm (6.00 inch)
Item Weight
17.71 kg (39.00 lb)
Outlet Diameter
152.4 mm (6.00 inch)
Overall Length
637.79 mm (25.11 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
27.7 m³/min (978.22 cfm)
Rated Flow Low-Range
21.5 m³/min (759.27 cfm)
Rated Flow Medium-Range
24.9 m³/min (879.34 cfm)
Restriction High-Range
24.91 mbar (10.00 inch H20)
Restriction Low-Range
14.91 mbar (5.99 inch H20)
Restriction Medium-Range
19.91 mbar (7.99 inch H20)
Style
Radialseal
Type
ERA Series
Unit
ea
Package Information
Packaged Depth (cm)
74.9
Packaged Width (cm)
53.6
Packaged Height (cm)
66.5
Packaged Weight (kg)
17.706
