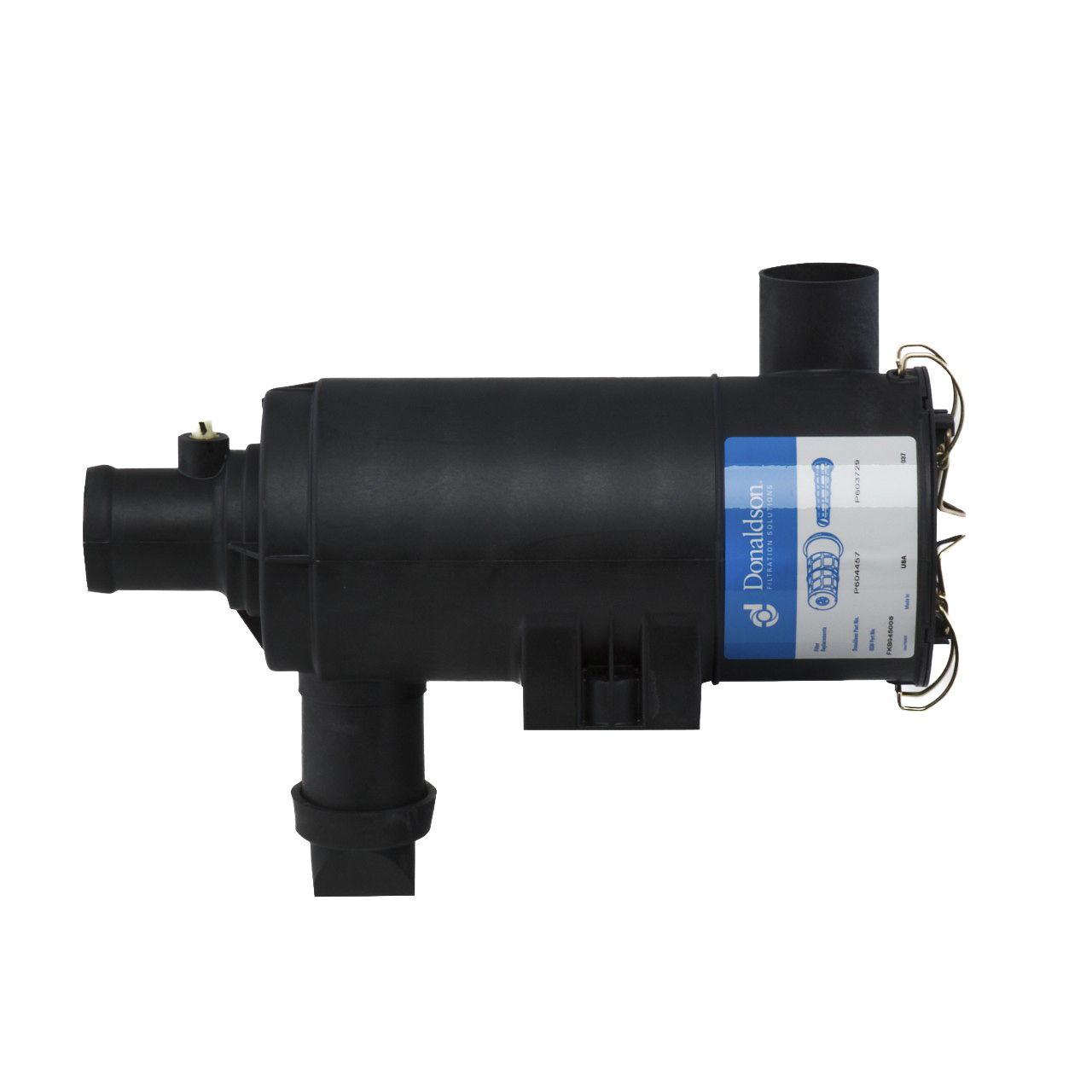

AIR CLEANER, FKB CYCLOFLOW
Brand :
DONALDSON
Part No :
B045008
Product Details
Why Choose Donaldson® FKB Cycloflow™ Air Cleaners?
The FKB series is a family of two-stage air cleaners for medium dust conditions. Compared to other air cleaner styles, this new air cleaner family delivers the performance of competitive larger air cleaners in a compact, rugged design. With heavy-duty plastic construction and non-metal filters, the air cleaner is lighter, more efficient and easier to install and replace than competing products. Another key design feature is the built-in mounting brackets. There's no need for additional mounting support. The two-stage design features a built-in pre-cleaner that separates up to 85% of airborne contaminants. The FKB's plastic housing and durable construction enables installation in all types of medium dust environments with engine air flow from 2 to 10 cu-m/min. FKB air cleaners effectively reduce contaminants flowing into the air intake system, provide a high level of engine protection from harmful contaminants and increase engine performance and fuel efficiency. The air cleaner models ship with both the main and safety filters.
Overall Length: 342.4 mm (13.48 inch), Inlet Diameter: 50.8 mm (2.00 inch), Body Diameter Maximum: 132.9 mm (5.23 inch), Outlet Diameter: 50.8 mm (2.00 inch), Body Length: 265.6 mm (10.46 inch), Rated Flow LR: 2 m³/min (71 cfm), Rated Flow MR: 2.4 m³/min (85 cfm), Rated Flow HR: 2.7 m³/min (95 cfm), Restriction LR: 14.91 mbar (5.98 inch H2O), Restriction MR: 19.91 mbar (7.99 inch H2O), Restriction HR: 24.91 mbar (10 inch H2O). Family: FKB, Brand: Cycloflow™
Body Diameter Maximum
132.9 mm (5.23 inch)
Body Length
265.6 mm (10.46 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Family
FKB
Filter Brand
Cycloflow™
Inlet Diameter
50.8 mm (2.00 inch)
Item Weight
1.26 kg (2.78 lb)
Outlet Diameter
50.8 mm (2.00 inch)
Overall Length
342.4 mm (13.48 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
2.7 m³/min (95.35 cfm)
Rated Flow Low-Range
2 m³/min (70.63 cfm)
Rated Flow Medium-Range
2.4 m³/min (84.76 cfm)
Restriction High-Range
24.91 mbar (10.00 inch H20)
Restriction Low-Range
14.91 mbar (5.99 inch H20)
Restriction Medium-Range
19.91 mbar (7.99 inch H20)
Unit
ea
Package Information
Packaged Depth (cm)
26.2
Packaged Width (cm)
20.1
Packaged Height (cm)
44.2
Packaged Weight (kg)
1.26
