AIR CLEANER, PFD POWERCORE
Brand :
DONALDSON
Part No :
D080187
Product Details

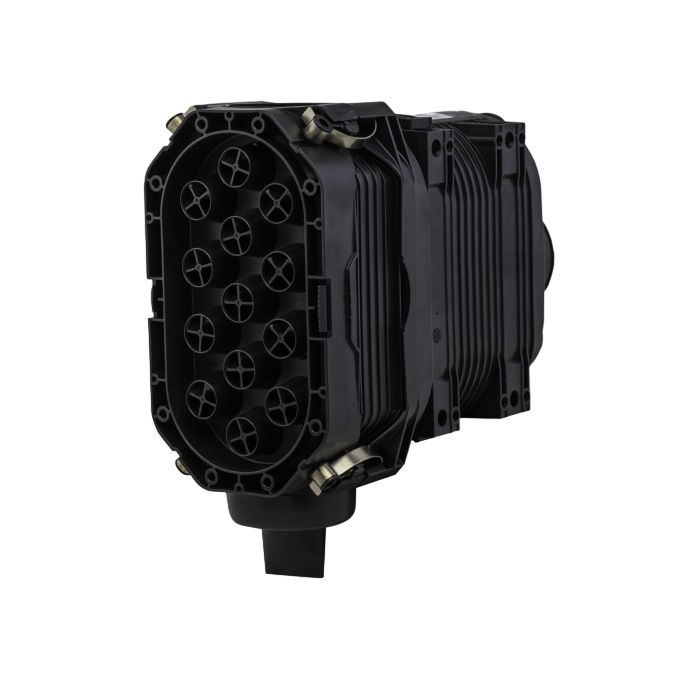

Donaldson® PowerCore® Edge Air Cleaner, PFD Series, Obround Shape
PowerCore Edge is easy to maintain on the job. In a multi-stage air cleaner, an integrated pre-cleaner removes the heaviest dust before it can reach the primary filter. Since pre-cleaners can clog in the most extreme off-road conditions, Donaldson designed the pre-cleaner on the PowerCore Edge to easily separate into two pieces to allow for fast and easy cleaning. In heavy dust- or debris-laden off-road environments, a scavenge vacuum system for more efficient removal of dust and debris from the pre-cleaner is available. When a scavenge system is used, PowerCore Edge improves serviceability by allowing the scavenge line to remain in place while servicing the pre-cleaner or the primary filter. PowerCore Edge also offers improved pre-cleaner performance in non-scavenged applications.
Outlet Diameter: 89 mm (3.5 inch), Overall Length: 353 mm (13.90 inch), Body Length: 317 mm (12.48 inch), Media Brand: PowerCore®
Body Length
317 mm (12.48 inch)
Brand
DONALDSON
Country of Origin
Czech Republic
Dangerous Good
No
Media Brand
PowerCore®
Outlet Diameter
89 mm (3.50 inch)
Overall Length
353 mm (13.90 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
6.5 m³/min (229.55 cfm)
Rated Flow Low-Range
5 m³/min (176.57 cfm)
Rated Flow Medium-Range
6 m³/min (211.89 cfm)
Unit
ea
Package Information
Packaged Depth (cm)
36
Packaged Width (cm)
24
Packaged Height (cm)
43
Packaged Weight (kg)
2.47
Substitute
