AIR CLEANER, PSD POWERCORE
Brand :
DONALDSON
Part No :
D090266
Product Details

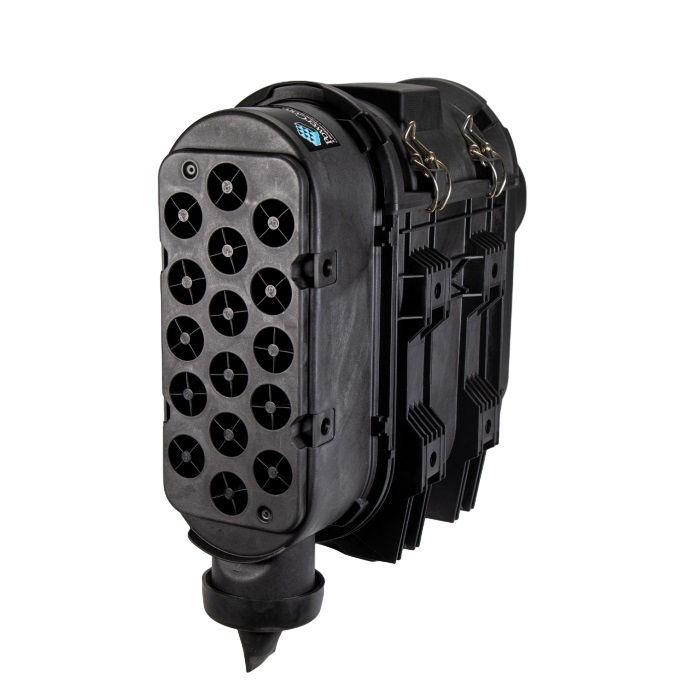

Donaldson® 2-Stage Air Cleaner, PSD Series, Obround Shape
The PSD air cleaner family offers two-stage filtration in a single, compact unit that delivers superior filtration performance using Donaldson® PowerCore® filtration technology. This non-metal air cleaner (except for cover clamps) is ideal for equipment operating in medium to heavy dust environments.
Outlet Diameter: 101.6 mm (4 inch), Overall Length: 433 mm (17.05 inch), Family: PSD, Media Brand: PowerCore®
Brand
DONALDSON
Country of Origin
Germany
Dangerous Good
No
Family
PSD
Item Weight
4.60 kg (10.14 lb)
Media Brand
PowerCore®
Outlet Diameter
101.6 mm (4.00 inch)
Overall Length
433 mm (17.05 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
10.8 m³/min (381.40 cfm)
Rated Flow Low-Range
8.2 m³/min (289.58 cfm)
Rated Flow Medium-Range
9.6 m³/min (339.02 cfm)
Restriction High-Range
24.91 mbar (10.00 inch H20)
Restriction Low-Range
14.95 mbar (6.00 inch H20)
Restriction Medium-Range
19.93 mbar (8.00 inch H20)
Unit
ea
Package Information
Packaged Depth (cm)
45.7
Packaged Width (cm)
29.3
Packaged Height (cm)
61.3
Packaged Weight (kg)
4.599
