AIR CLEANER, XRB CYCLOFLOW
Brand :
DONALDSON
Part No :
B120470
Product Details

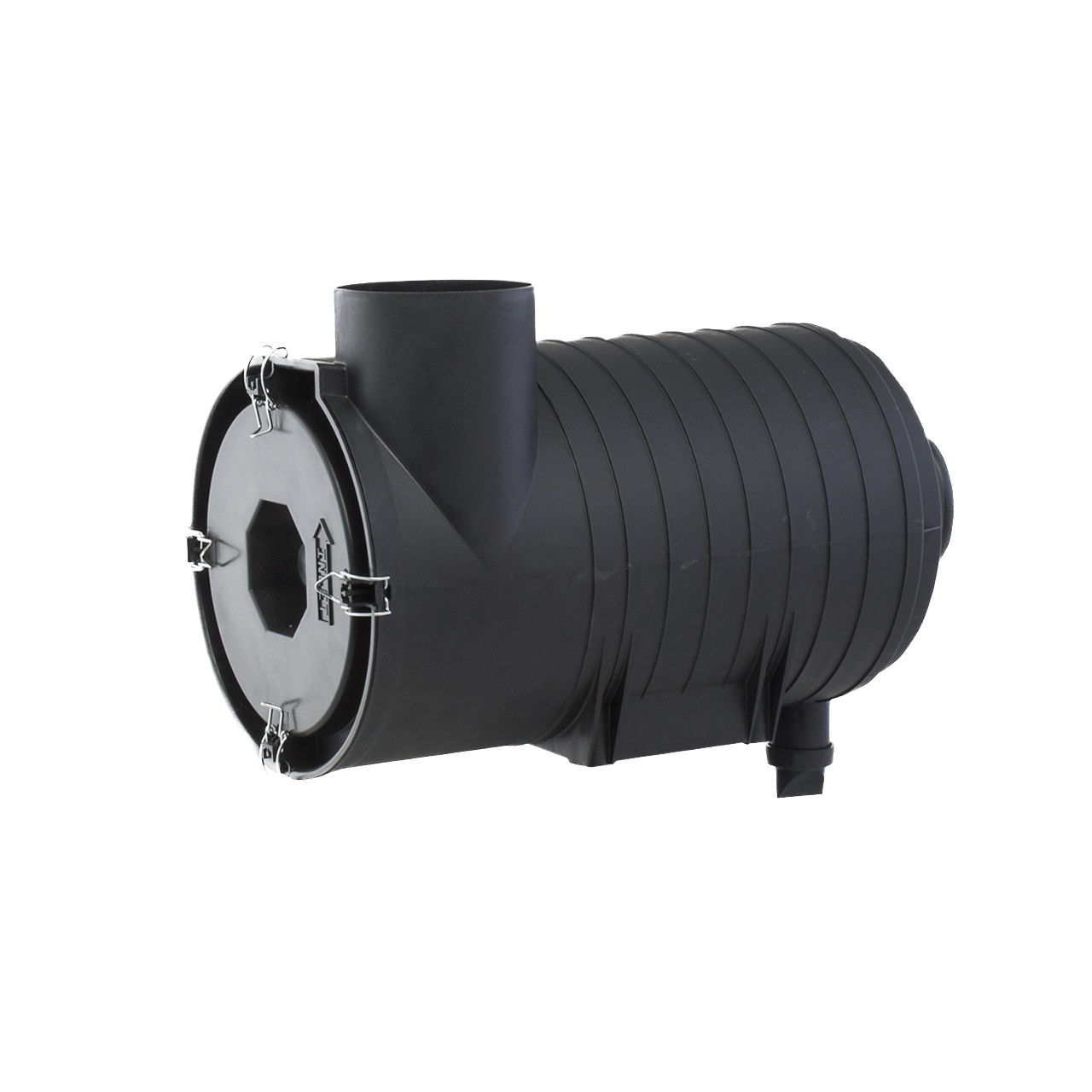

Donaldson® 2-Stage Air Cleaner, XRB Series
The XRB series is a family of two-stage RadialSeal™ air cleaners for medium dust conditions. The plastic housing and durable construction enables installation in all types of operating environments.
• Smaller in diameter compared to competitive brands with similar airflow
• Improved handling and maintenance - lighter and smaller, changing filters is a snap
• Cover latch position allows for minimum service clearance and eases filter service
• Mounting brackets built-in to air cleaner body eliminating need for mounting bands
Body Diameter Maximum
330.8 mm (13.02 inch)
Body Length
523.4 mm (20.61 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Family
XRB
Filter Brand
Cycloflow™
HTS Code
8421999017
Inlet Diameter
152.4 mm (6.00 inch)
Item Weight
10.76 kg (23.70 lb)
Length
601.4 mm (23.68 inch)
Outer Diameter
330.8 mm (13.02 inch)
Outlet Diameter
128.1 mm (5.04 inch)
Overall Length
601.4 mm (23.68 inch)
Pieces Per Box
1
Rated Flow High-Range
17.8 m³/min (628.60 cfm)
Rated Flow Low-Range
13.9 m³/min (490.87 cfm)
Rated Flow Medium-Range
16 m³/min (565.03 cfm)
Restriction High-Range
24.91 mbar (10.00 inch H20)
Restriction Low-Range
14.91 mbar (5.99 inch H20)
Restriction Medium-Range
19.91 mbar (7.99 inch H20)
Unit
ea
UPC Code
742330170809
Package Information
Packaged Depth (cm)
53.3
Packaged Width (cm)
53.1
Packaged Height (cm)
65.5
Packaged Weight (kg)
10.76
