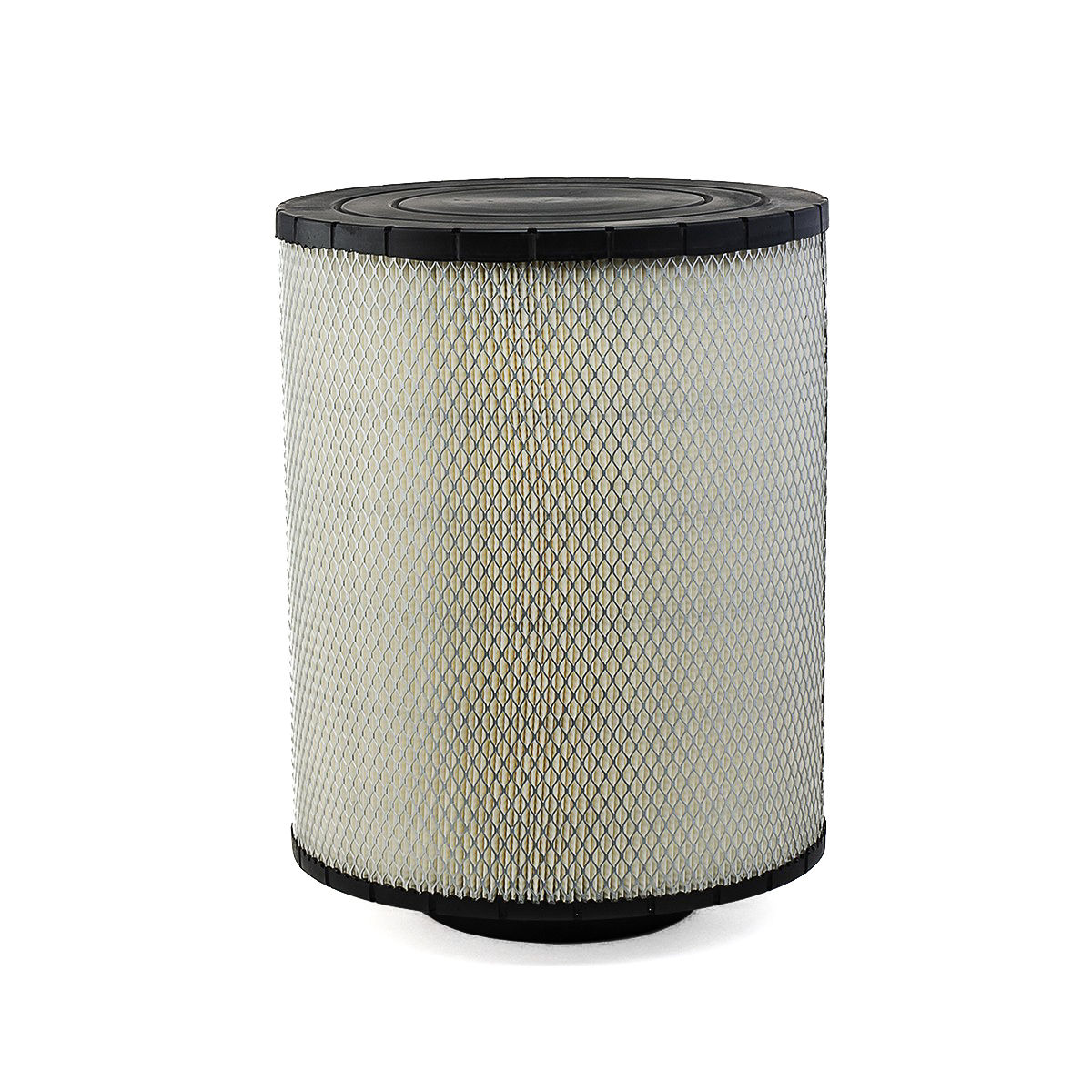

AIR FILTER, PRIMARY DURALITE ECB12
Brand :
DONALDSON
Part No :
B125003
Product Details
Why Choose Donaldson DuraLite™ Air Cleaners?
Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
Outlet Diameter: 152.4 mm (6.00 inch), Body Diameter Maximum: 318 mm (12.52 inch), Body Length: 381 mm (15.00 inch), Family: ECB, Media Brand: DuraLite™, Media Type: Cellulose
Body Diameter Maximum
318 mm (12.52 inch)
Body Length
381 mm (15.00 inch)
Brand
DONALDSON
Country of Origin
United States
Dangerous Good
No
Efficiency Test Standard
ISO 5011
Family
ECB
Filter Brand
DuraLite™
Item Weight
4.19 kg (9.23 lb)
Media Type
Cellulose
Outlet Diameter
152.4 mm (6.00 inch)
Pack Quantity
1 Piece Per Box
Rated Flow High-Range
36.7 m³/min (1296.05 cfm)
Rated Flow Low-Range
23.5 m³/min (829.89 cfm)
Rated Flow Medium-Range
31.4 m³/min (1108.88 cfm)
Restriction High-Range
19.91 mbar (7.99 inch H20)
Restriction Low-Range
10 mbar (4.01 inch H20)
Restriction Medium-Range
14.91 mbar (5.99 inch H20)
Style
Round
Type
Primary
Unit
ea
Package Information
Packaged Depth (cm)
32.5
Packaged Width (cm)
32.3
Packaged Height (cm)
43.4
Packaged Weight (kg)
4.19
