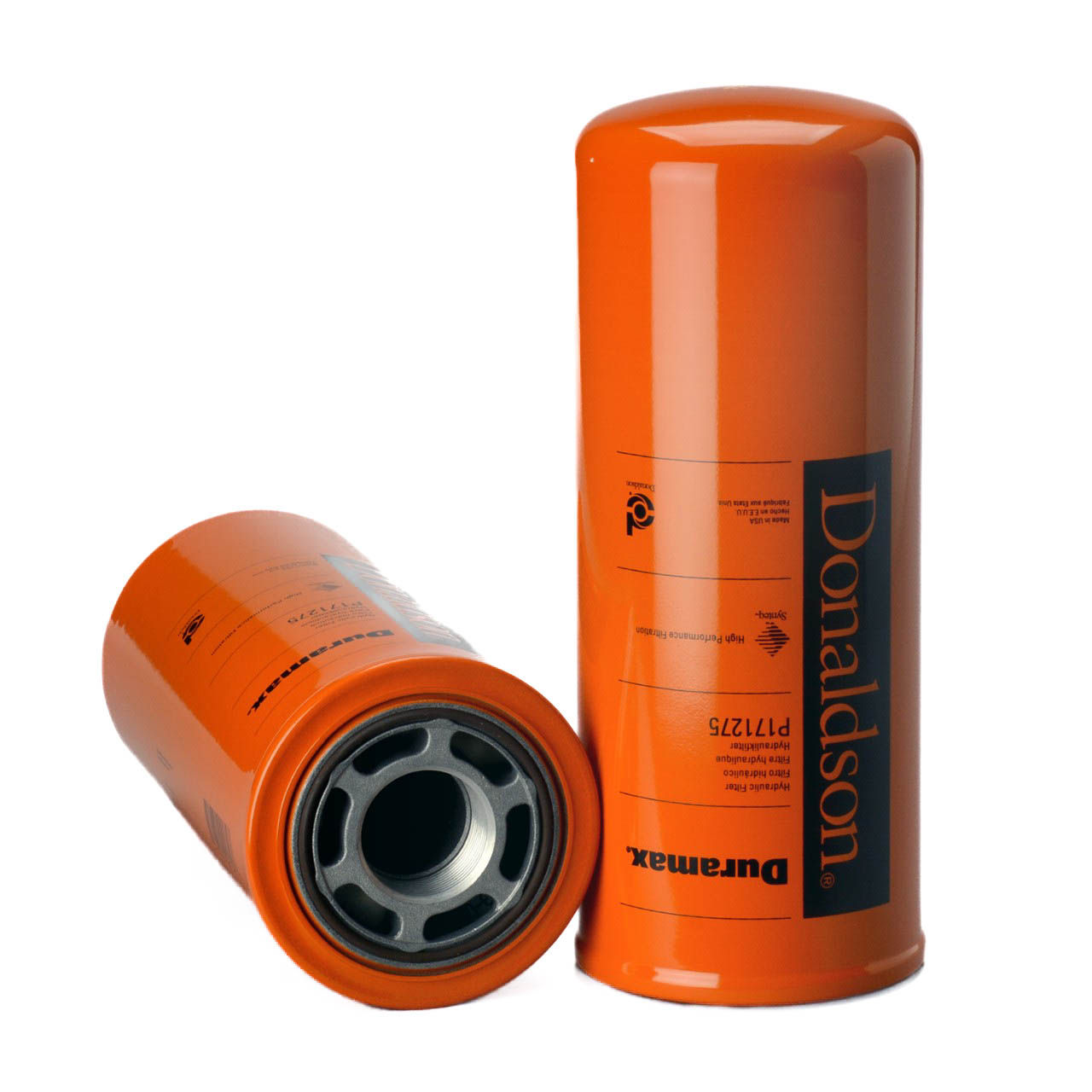

HYDRAULIC FILTER, SPIN-ON DURAMAX
Brand :
DONALDSON
Part No :
P171275
Product Details
Donaldson® Duramax® Spin-On Hydraulic Filter, Synthetic Media, Series: HMK05/25
HMK05 (single) and HMK25 (double) Duramax® spin-on filters are perfect for high flow applications, featuring a heavy-duty steel body and die cast top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both HMK05 and HMK25 models use the same replacement filters, with identical pressure ratings, reducing inventory.
Note: Water Glycol Compatibility with Fluorocarbon Seals
Brand
DONALDSON
Item Weight
1.82 kg (4.02 lb)
Unit
ea
Length
295.4 mm (11.63 inch)
Gasket ID
79 mm (3.11 inch)
Gasket OD
86 mm (3.39 inch)
Outer Diameter
119.38 mm (4.70 inch)
Thread Size
1 3/4-12 UN
Style
Spin-On
Pack Quantity
1 Piece Per Box
Returnable
Yes
Efficiency
11 micron @ Beta 1000
Dangerous Good
No
Country of Origin
United States
Package Information
Packaged Depth (cm)
13.2
Packaged Width (cm)
13
Packaged Height (cm)
31
Packaged Weight (kg)
1.823
Substitute
