Special Price $6,706.96
Excl. GST
Availability
Available

MANIFOLD, BULK FLUID

Brand : DONALDSON
Part No : 1KDFF1008

Product Details

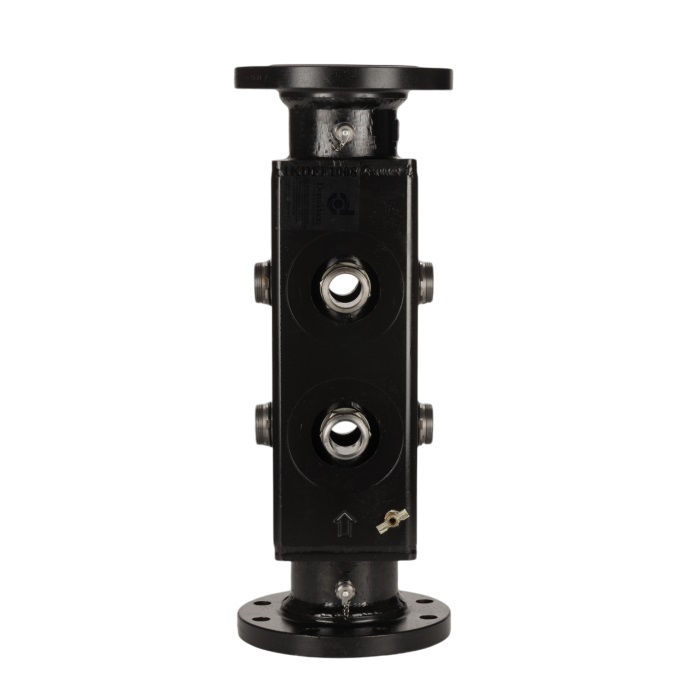

Donaldson® Manifold, Bulk Fluid, Inline 8, Painted Carbon Steel
Clean Solutions Filter Manifolds expand capacity or increase flow rate beyond the capability of a single or dual filter head. Two or more manifolds can be plumbed together to accommodate even larger flow rates. Manifolds split flow evenly between the individual filters. Fluid passes through only one of the filters on its way across the manifold. Dividing the flow between multiple filters plumbed in parallel reduces the pressure drop through each filter. The combination of Clean Solutions manifolds and filters ensure that your equipment receives the cleanest possible fuel and oil.
Inlet Diameter 97 mm (3.82 inch), Outlet Diameter 97 mm (3.82 inch), Filter Quantity Up to 8
Brand
DONALDSON
Item Weight
50.00 kg (110.25 lb)
Unit
ea
Length
600 mm (23.62 inch)
Outer Diameter
228.6 mm (9.00 inch)
Thread Size
1 3/4-12 UN
Returnable
Yes
Dangerous Good
No
Country of Origin
South Africa

Package Information

Packaged Depth (cm)
78
Packaged Width (cm)
24
Packaged Height (cm)
24
Packaged Weight (kg)
50

Substitute

CFLS 4 WAY MANIFOLD 1600LPM
DONALDSON
CFLS 4 WAY MANIFOLD 1600LPM
Part No:P568932
Special Price $18,434.30
Excl. GST
Available
