MANIFOLD, BULK FLUID
Brand :
DONALDSON
Part No :
1KDFF1012
Product Details

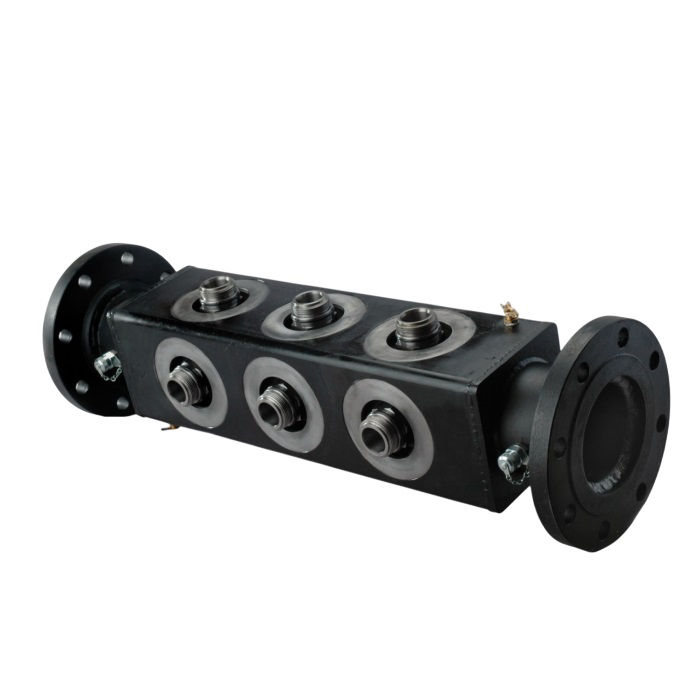

Donaldson® Filter Inline 12 Manifold
Clean Solutions Filter Manifolds expand capacity and increase flow rate beyond the capability of a single or dual filter head. The 1KDFF1012 Inline 12 Manifold is constructed of heavy-duty carbon steel with no external aluminum. It handles flow rates of up to 700 gpm / 2650 lpm.
Dividing the flow between multiple filters plumbed in parallel slows the flow rate per filter, reducing pressure drop and extending filter life. A variety of filter medias are available to meet the specific application requirements
Inlet Size 4 ANSI 150 Flange, Outlet Size 4 ANSI 150 Flange, Inlet Diameter 97.2 mm (3.83 inch), Outlet Diameter 97.2 mm (3.83 inch), Flange Diameter 228.6 mm (9.00 inch)
Brand
DONALDSON
Item Weight
60.33 kg (133.02 lb)
Unit
ea
Length
750 mm (29.53 inch)
Thread Size
1 3/4-12 UN
Pack Quantity
1 Piece Per Box
Returnable
Yes
Dangerous Good
No
Country of Origin
South Africa
Package Information
Packaged Depth (cm)
81.69
Packaged Width (cm)
24.69
Packaged Height (cm)
23.77
Packaged Weight (kg)
60.33
