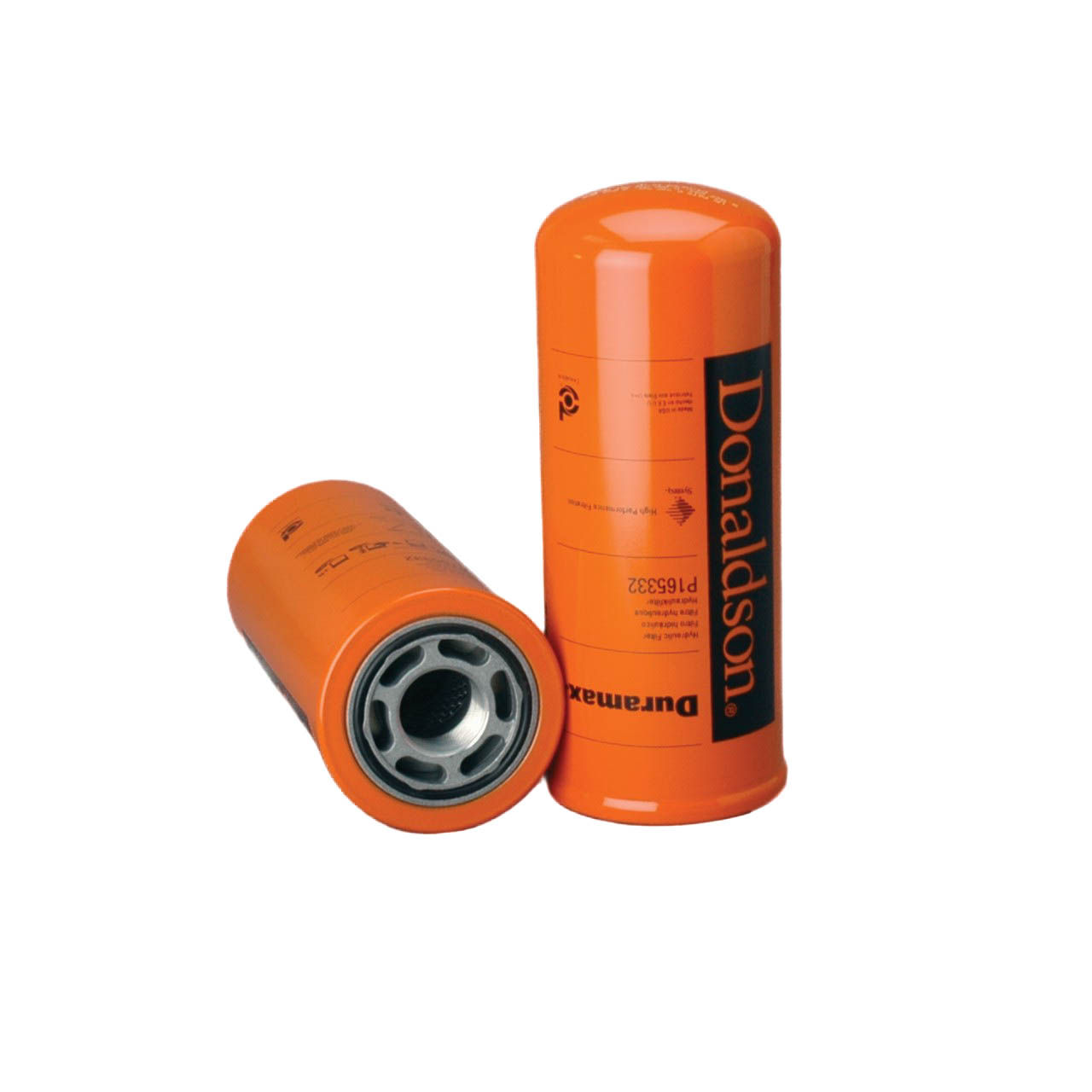

HYDRAULIC FILTER, SPIN-ON DURAMAX XL
Brand :
DONALDSON
Part No :
P165332
Product Details
Donaldson® Duramax® Spin-On Hydraulic XL Filter, Synteq™ XP™ Media, Series: HMK04/24
HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a durable die cast aluminum head, heavy-duty steel body, with die cast aluminum top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both models use the same replacement filters and have identical pressure ratings, reducing inventory. Both filters have identical pressures, but the HMK24 handles greater flow capacity than the HMK04.
Brand
DONALDSON
Item Weight
1.23 kg (2.70 lb)
Unit
ea
Length
239.78 mm (9.44 inch)
Gasket ID
63 mm (2.48 inch)
Gasket OD
70 mm (2.76 inch)
Outer Diameter
97 mm (3.82 inch)
Thread Size
1 3/8-12 UN
Style
Spin-On
Pack Quantity
1 Piece Per Box
Returnable
Yes
Type
Duramax® Synteq™ XP™
Efficiency
4 micron @ Beta 2, 6 micron @ Beta 1000
Dangerous Good
No
Country of Origin
Italy
Package Information
Packaged Depth (cm)
10.4
Packaged Width (cm)
10.2
Packaged Height (cm)
24.9
Packaged Weight (kg)
1.226
Substitute
