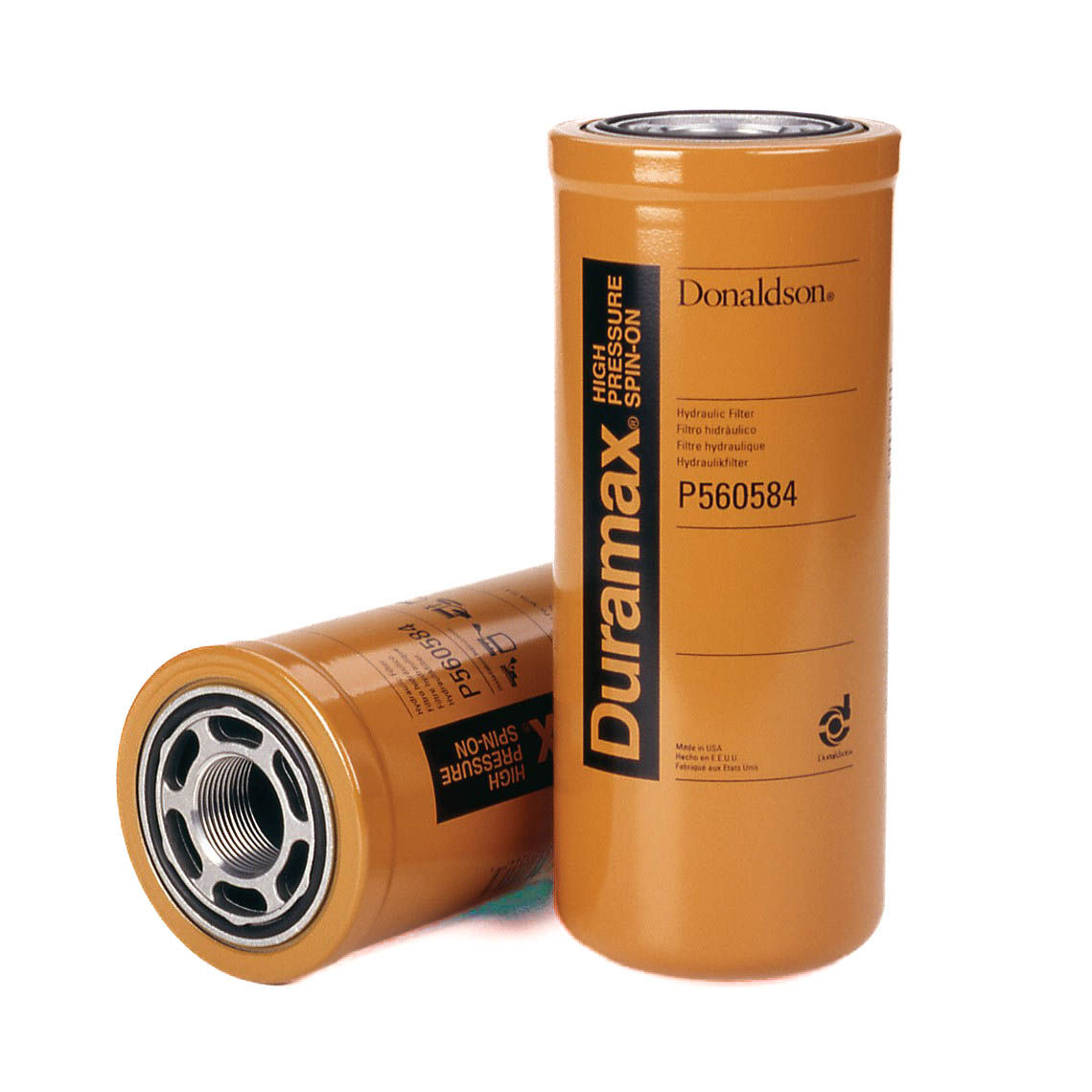

HYDRAULIC FILTER, SPIN-ON DURAMAX
Brand :
DONALDSON
Part No :
P560584
Product Details
Donaldson® Duramax® Spin-On Hydraulic Filter, Series: HMK04/24, Cellulose Water Absorbent Media, Nitrile Seal
HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a durable die cast aluminum head, heavy-duty steel body, with die cast aluminum top plate for added strength. A special head-to-canister O-ring seal prevents leakage. Both models use the same replacement filters and have identical pressure ratings, reducing inventory. Both filters have identical pressures, but the HMK24 handles greater flow capacity than the HMK04.
Water Capacity 155 ml, Series HMK04/24, Brand Duramax®, Media Type Cellulose Water Absorbent
Brand
DONALDSON
Item Weight
1.13 kg (2.49 lb)
Unit
ea
Length
239.78 mm (9.44 inch)
Gasket ID
63.1 mm (2.48 inch)
Gasket OD
70.15 mm (2.76 inch)
Outer Diameter
97 mm (3.82 inch)
Thread Size
1 3/8-12 UN
Style
Spin-On
Pack Quantity
1 Piece Per Box
Returnable
Yes
Efficiency
10 micron @ Beta 2
Dangerous Good
No
Country of Origin
United States
Package Information
Packaged Depth (cm)
10.2
Packaged Width (cm)
10.7
Packaged Height (cm)
25.7
Packaged Weight (kg)
1.13
Substitute
