Special Price $82.13
Excl. GST
Availability
Available

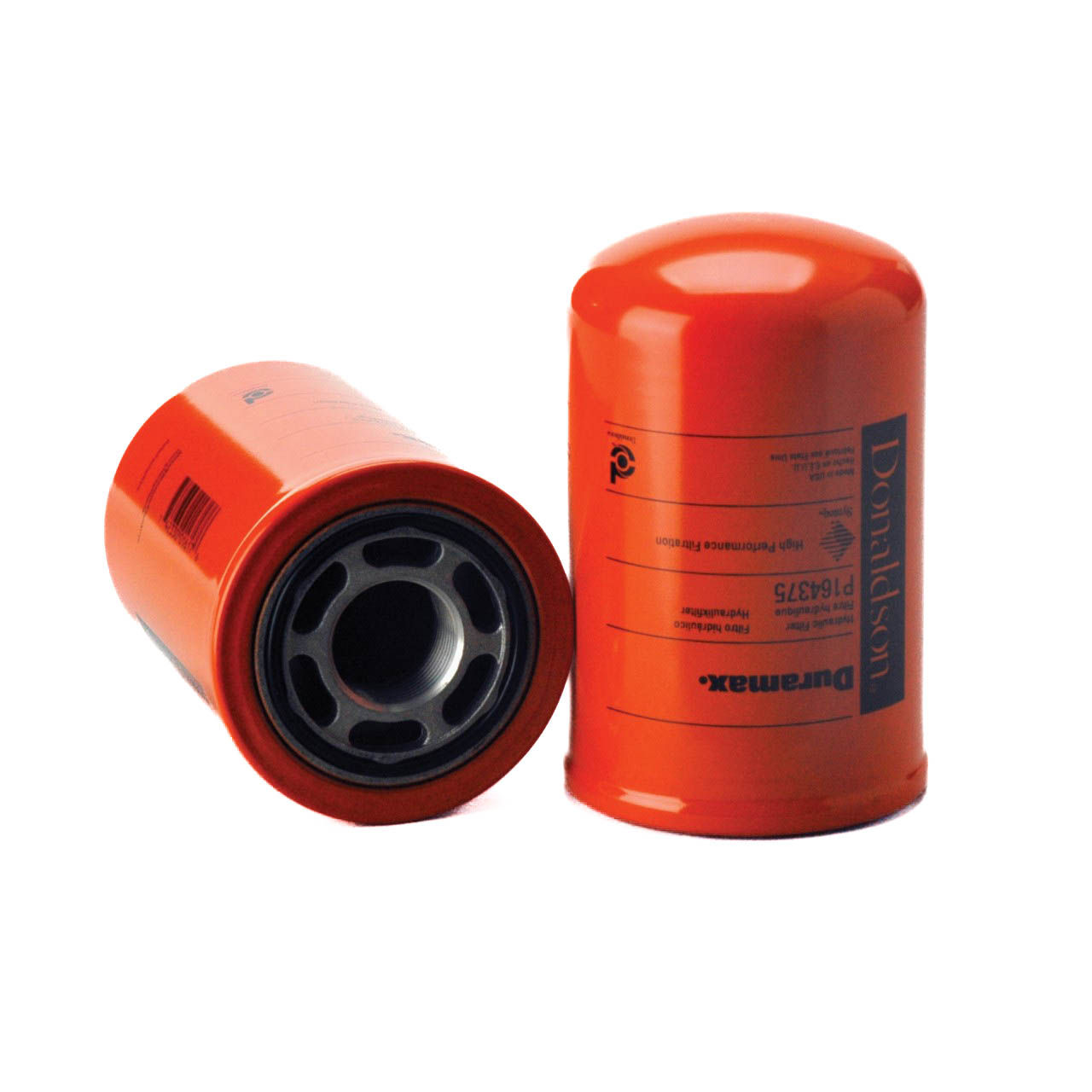

HYDRAULIC FILTER, SPIN-ON DURAMAX

Brand : DONALDSON
Part No : P164375

Product Details

Donaldson® Duramax® Spin-On Hydraulic Filter, Synteq XP Synthetic Media, Series HMK04/24
HMK04 (single) and HMK24 (double) Duramax® spin-on filters feature a die-cast aluminum head, heavy-duty steel body, and die-cast aluminum top plate for added strength. A special head-to-canister O-Ring seal prevents leakage. Nitrile seals are standard; fluorocarbon seals are available on some models. Both models use the same replacement filters and feature identical pressure ratings, but the HMK24 handles greater flow capacity. There’s no need to inventory two different replacement filters. A full range of media options are available, using Donaldson’s exclusive Synteq™ synthetic media. Choose the indicator types and bypass options to suit your application.
Collapse Burst 20 bar (290 psi), Flow Direction Standard, Brand Duramax®
Brand
DONALDSON
Item Weight
0.81 kg (1.79 lb)
Unit
ea
Length
151.64 mm (5.97 inch)
Gasket ID
63 mm (2.48 inch)
Gasket OD
70 mm (2.76 inch)
Outer Diameter
97 mm (3.82 inch)
Thread Size
1 3/8-12 UN
Style
Spin-On
Pack Quantity
1 Piece Per Box
Returnable
Yes
Efficiency
4 micron @ Beta 2, 9 micron @ Beta 200, 11 micron @ Beta 1000
Dangerous Good
No
Country of Origin
Mexico

Package Information

Packaged Depth (cm)
10.4
Packaged Width (cm)
10.4
Packaged Height (cm)
16.5
Packaged Weight (kg)
0.863

Substitute

HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P164381
Notes: Synteq Synthetic 23 µm βₓ(c) = 1000
Special Price $78.51
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P163542
Notes: Synteq Synthetic 11 µm βₓ(c) = 1000
Special Price $92.36
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P165335
Notes: Synteq Synthetic 50 µm βₓ(c) = 1000
Special Price $78.77
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P165354
Notes: Synteq Synthetic 6 µm βₓ(c) = 1000
Special Price $81.16
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P573301
Notes: Wire Mesh 150 µm βₓ(c) = 2
Special Price $118.37
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P560584
Notes: Water Absorbing 10 µm βₓ(c) = 2
Special Price $88.11
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX XL
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX XL
Part No:P165338
Notes: Synteq Synthetic 50 µm βₓ(c) = 1000
Special Price $85.48
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P177047
Notes: Synteq Synthetic 14 µm βₓ(c) = 1000
Special Price $118.94
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P164056
Notes: Synteq Synthetic 13 µm βₓ(c) = 1000
Special Price $139.01
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P164378
Notes: Synteq Synthetic 11 µm βₓ(c) = 1000
Special Price $108.78
Excl. GST
Available
HYDRAULIC FILTER, SPIN-ON DURAMAX
DONALDSON
HYDRAULIC FILTER, SPIN-ON DURAMAX
Part No:P164375
Notes: Synteq Synthetic 11 µm βₓ(c) = 1000
Special Price $82.13
Excl. GST
Available
